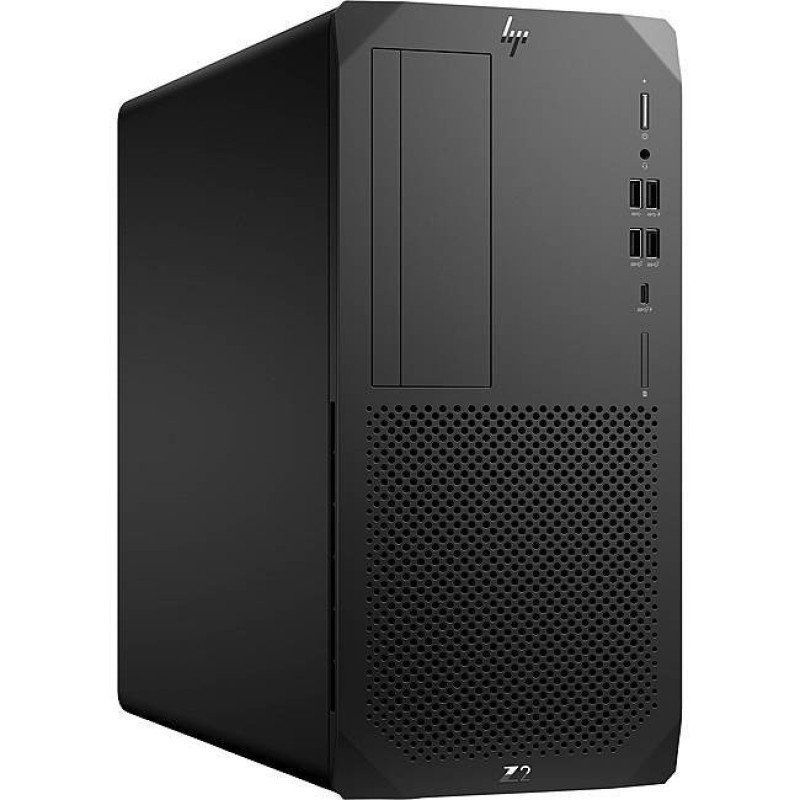

HP Z2 G5 Tower Workstation W-1250P

  • HP IDS Z2 TWR G5 WKS
  • Single Unit (Tower) Z2 Packaging
  • HP Z2 P TWR G5 GOL (EPA90) 500W IDS Chassis
  • HP Linux-ready
  • Operating System Load to SATA
  • Intel Xeon W-1250P 4.1GHz 2666MHz 6C 95W CPU
  • Chipset: Intel W480 chipset
  • 8GB (1 x 8GB) DDR4-3200 UDIMM Memory
  • Intel UHD Graphics P630 (2 x DisplayPort 1.4)
  • 256 GB M.2 2280 PCIe NVMe TLC SSD
  • LAN: Integrated Intel I219-LM PCIe GbE
  • Expansion slots: 1 PCIe 3 x4 (x16 connector); 1 PCIe 3 x16 (x16 connector); 1 M.2 2230 PCIe 3 x1; 2 M.2 2280 PCIe 3 x4; 2 PCIe 3 x1 (x4 connector)
  • USB Business Slim Wired Keyboard
  • HP Optical USB Wired Mouse
  • HP Z Central Remote Boost 2020 Software for Z Workstations
  • HP Z2 TWR G5 Country Kit
  • 3/3/3 (material/labor/onsite) Warranty
Manufacturer: HP Inc.
€946.04 (Giá đã có VAT)
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Processors

Feature
Description
Intel Xeon W-1290P Processor
Up to 5.2 GHz with Intel Turbo Boost Technology (3.7 GHz base frequency)
20 MB cache and 10 cores
Intel UHD Graphics P630
DDR4 memory up to 2933 MT/s data rate
125 W TDP
Intel vPro Technology
Intel Xeon W-1270 Processor
Up to 5.0 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency)
16 MB cache and 8 cores
Intel UHD Graphics P630
DDR4 memory up to 2933 MT/s data rate
80 W TDP
Intel vPro Technology
Intel Xeon W-1250P Processor
Up to 4.8 GHz with Intel Turbo Boost Technology (4.1 GHz base frequency)
12 MB cache and 6 cores
Intel UHD Graphics P630
DDR4 memory up to 2666 MT/s data rate
125 W TDP
Intel vPro Technology
Intel Xeon W-1250 Processor
Up to 4.7 GHz with Intel Turbo Boost Technology (3.3 GHz base frequency)
12 MB cache and 6 cores
Intel UHD Graphics P630
DDR4 memory up to 2666 MT/s data rate
80 W TDP
Intel vPro Technology
Intel Core i9-10900K Processor
Up to 5.2 GHz with Intel Turbo Boost Technology (3.7 GHz base frequency)
20 MB cache and 10 cores
Intel UHD Graphics 630
DDR4 memory up to 2933 MT/s data rate
125 W TDP
Intel vPro Technology
Intel Core i9-10900 Processor
Up to 5.1 GHz with Intel Turbo Boost Technology (2.8 GHz base frequency)
20 MB cache and 10 cores
Intel UHD Graphics 630
DDR4 memory up to 2933 MT/s data rate
65 W TDP
Intel vPro Technology
Intel Core i9-10900F Processor
Up to 5.1 GHz with Intel Turbo Boost Technology (2.8 GHz base frequency)
20 MB cache and 10 cores
DDR4 memory up to 2933 MT/s data rate
65 W TDP
Intel vPro Technology
Intel Core i7-10700K Processor
Up to 5.1 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency)
16 MB cache and 8 cores
Intel UHD Graphics 630
DDR4 memory up to 2933 MT/s data rate
125 W TDP
Intel vPro Technology
Intel Core i7-10700 Processor
Up to 4.8 GHz with Intel Turbo Boost Technology (2.9 GHz base frequency)
16 MB cache and 8 cores
Intel UHD Graphics 630
DDR4 memory up to 2933 MT/s data rate
65 W TDP
Intel vPro Technology
Intel Core i5-10600K Processor
Up to 4.8 GHz with Intel Turbo Boost Technology (4.1 GHz base frequency)
12 MB cache and 6 cores
Intel UHD Graphics 630
DDR4 memory up to 2666 MT/s data rate
125 W TDP
Intel vPro Technology
Intel Core i5-10600 Processor
Up to 4.8 GHz with Intel Turbo Boost Technology (3.3 GHz base frequency)
12 MB cache and 6 cores
Intel UHD Graphics 630
DDR4 memory up to 2666 MT/s data rate
65 W TDP
Intel vPro Technology
Intel Core i5-10500 Processor
Up to 4.5 GHz with Intel Turbo Boost Technology (3.1 GHz base frequency)
12 MB cache and 6 cores
Intel UHD Graphics 630
DDR4 memory up to 2666 MT/s data rate
65 W TDP
Intel vPro Technology
Intel Core i5-10400 Processor
Up to 4.3 GHz with Intel Turbo Boost Technology (2.9 GHz base frequency)
12 MB cache and 6 cores
Intel UHD Graphics 630
DDR4 memory up to 2666 MT/s data rate
65 W TDP
Intel Core i3-10300 Processor
3.7 GHz Base frequency, up to 4.4 GHz maximum turbo frequency with Intel Turbo Boost Technology
8 MB cache, 4 cores, and 8 threads
Intel UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Intel Core i3-10100 Processor
Up to 4.3 GHz with Intel Turbo Boost Technology (3.6 GHz base frequency)
6 MB cache and 4 cores
Intel UHD Graphics 630
DDR4 memory up to 2666 MT/s data rate
65 W TDP
Intel Core i5/i7/i9 and Xeon with vPro technology capable
Intel Virtualization Technology (Intel VT)
Intel Active Management Technology (iAMT)
NOTE:
For Windows operating system only.
Future virtual appliances applications dependent on third-party software and compatibility to be determined.
Chipset
Intel W480
NOTE:
Multicore is designed to improve performance of certain software products. Not all customers or software applications necessarily benefit from use of this technology. Performance and clock frequency vary depending on application workload and hardware and software configurations. Intel numbering is not a measurement of higher performance.
Intel Turbo Boost is based on maximum GHz for a single core.

Memory

Feature
Description
Standard
(4) UDIMM slots supporting dual-channel memory
DDR4 UDIMMs ECC/non-ECC (transfer rates up to 2933 MT/s)
Maximum
Up to 128 GB
Supported configurations
HP 4 GB (1 x 4 GB) DDR4-3200 non-ECC UDIMM
HP 8 GB (2 x 4 GB) DDR4-3200 non-ECC UDIMM
HP 8 GB (1 x 8 GB) DDR4-3200 non-ECC UDIMM
HP 8 GB (1 x 8 GB) DDR4-3200 ECC UDIMM
HP 16 GB (2 x 8 GB) DDR4-3200 non-ECC UDIMM
HP 16 GB (2 x 8 GB) DDR4-3200 ECC UDIMM
HP 16 GB (1 x 16 GB) DDR4-3200 non-ECC UDIMM
HP 16 GB (1 x 16 GB) DDR4-3200 ECC UDIMM
HP 24 GB (3 x 8 GB) DDR4-3200 non-ECC UDIMM
HP 24 GB (3 x 8 GB) DDR4-3200 ECC UDIMM
HP 32 GB (4 x 8 GB) DDR4-3200 non-ECC UDIMM
HP 32 GB (4 x 8 GB) DDR4-3200 ECC UDIMM
HP 32 GB (2 x 16 GB) DDR4-3200 non-ECC UDIMM
HP 32 GB (2 x 16 GB) DDR4-3200 ECC UDIMM
HP 32 GB (1 x 32 GB) DDR4-3200 non-ECC UDIMM
HP 32 GB (1 x 32 GB) DDR4-3200 ECC UDIMM
HP 64 GB (4 x 16 GB) DDR4-3200 non-ECC UDIMM
HP 64 GB (4 x 16 GB) DDR4-3200 ECC UDIMM
HP 64 GB (2 x 32 GB) DDR4-3200 non-ECC UDIMM
HP 64 GB (2 x 32 GB) DDR4-3200 ECC UDIMM
HP 128 GB (4 x 32 GB) DDR4-3200 non-ECC UDIMM
HP 128 GB (4 x 32 GB) DDR4-3200 ECC UDIMM
AMO
HP 4 GB (1 x 4 GB) DDR4-3200 non-ECC UDIMM
HP 8 GB (1 x 8 GB) DDR4-3200 non-ECC UDIMM
HP 8 GB (1 x 8 GB) DDR4-3200 ECC UDIMM
HP 16 GB (1 x 16 GB) DDR4-3200 non-ECC UDIMM
HP 16 GB (1 x 16 GB) DDR4-3200 ECC UDIMM
HP 32 GB (1 x 32 GB) DDR4-3200 non-ECC UDIMM
HP 32 GB (1 x 32 GB) DDR4-3200 ECC UDIMM
NOTE:
Intel Core processors only support non-ECC memory.
ECC and non-ECC memory DIMMs cannot be mixed on the same system.
Two channels of DDR4 memory are supported. To realize full performance at least one DIMM must be inserted into each channel.
CPUs determine the speed at which the memory is clocked. If a 2666 MHz capable CPU is used in the system, the maximum speed the memory runs at 2666 MHz regardless of the specified speed of the memory.
NOTE:
Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB might not all be available due to system resource requirements.

Graphics

Feature
Description
Integrated
Intel UHD Graphics P630
Intel UHD Graphics 630
Discrete
Entry 3D (two discrete cards supported)
NVIDIA Quadro P400 2 GB Graphics
NVIDIA Quadro P620 2 GB Graphics
Mid-range 3D
AMD Radeon Pro WX 3200 4 GB Graphics (two discrete cards supported)
NVIDIA Quadro P1000 4 GB Graphics (two discrete cards supported)
NVIDIA Quadro P2200 5 GB Graphics (single discrete card supported)
High End 3D
NVIDIA Quadro RTX 4000 8 GB Graphics (single discrete card supported)
Ultra High End 3D
NVIDIA Quadro RTX 5000 16 GB Graphics (single discrete card supported)
NVIDIA Quadro RTX 6000 24 GB Graphics (single discrete card supported)
Graphics cable adapters
HP DisplayPort to HDMI True 4K Adapter
HP Single mini DP-to-DP Adapter Cable
HP DisplayPort to DVI-D Adapter
HP DisplayPort to VGA Adapter
HP USB-C to VGA Adapter
HP USB-C to HDMI Adapter
HP USB-C to DisplayPort Adapter
NOTE:
All DisplayPort ports support DP1.4 High Bit Rate (HBR2) when video output is via Intel Graphics. Discrete graphics support DP1.4 High Bit Rate (HBR3).

Networking/communication

Feature
Description
Standard
Intel I219LM PCIe GbE Controller (Intel vPro with Intel AMT 12.0)
NOTE:
If AMT is provisioned, then network teaming with the integrated LAN port is not possible.
Aquantia AQN-108 1-Port 5GbE NIC
HP 10GbE SFP+ SR Tranceiver
Intel Ethernet I350-T4 4-Port 1Gb NIC
Intel X550 10GBASE-T Dual Port NIC
Intel X710-DA2 10GbE SFP+ DP NIC
Intel Ethernet I350-T2 2-Port 1Gb NIC
NOTE:
"Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
WLAN
Intel AX201 802.11 a/b/g/n/ac/ax WLAN and Bluetooth 5.0 M.2 NIC
NOTE:
Wi-Fi 6 is backwards compatible with prior 802.11 specs.
Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited. The specifications for the 802.11 WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it might affect the ability of the notebook to communicate with other 802.11 WLAN devices.

Storage and drives

Feature
Description
SATA Hard Drives
500 GB 7200 RPM SATA HDD (3.5 in)
1 TB 7200 RPM SATA HDD (3.5 in)
2 TB 7200 RPM SATA HDD (3.5 in)
1 TB 7200 RPM SATA HDD (3.5 in) Enterprise Class
2 TB 7200 RPM SATA HDD (3.5 in) Enterprise Class
4 TB 7200 RPM SATA HDD (3.5 in) Enterprise Class
8 TB 7200 RPM SATA HDD (3.5 in) Enterprise Class
500 GB 7200 RPM SATA SED HDD (3.5 in)
SATA Solid State Drives
HP 256 GB SATA SSD
HP 512 GB SATA SSD
HP 1 TB SATA SSD
HP 2 TB SATA SSD
HP 256 GB SATA OPAL2 SED SSD
HP 512 GB SATA OPAL2 SED SSD
PCIe Solid State Drives
HP Z Turbo 1 TB TLC Z2 G5 TWR/SFF SSD Kit
HP Z Turbo 256 GB SED Z2 G5 TWR/SFF SSD Kit
HP Z Turbo 256 GB TLC Z2 G5 TWR/SFF SSD
HP Z Turbo 2 TB TLC Z2 G5 TWR/SFF SSD Kit
HP Z Turbo 512 GB SED Z2 G5 TWR/SFF SSD Kit
HP Z Turbo 512 GB TLC Z2 G5 TWR/SFF SSD Kit
Optical and removable storage
HP 9.5mm Slim DVD Writer
HP DX175 Removable HDD Frame/Carrier
HP DX175 Removable HDD Spare Carrier
HP SD card reader (Z2 TWR)
HP 9.5mm Slim BDXL Blu-Ray Writer
HP 9.5mm Slim DVD-ROM Drive
RAID support
Integrated SATA Controller (Z2 G5)
Integrated SATA Controller, RAID 0,1 supported: 4x 6 Gb/s ports
Factory integrated RAID on motherboard for SATA drives
RAID 0 Data Configuration
RAID 1 Data Configuration
Factory integrated RAID on motherboard for Z Turbo Drive
RAID 0 Boot or Data Configuration
RAID 1 Boot or Data Configuration
NOTE:
The HP Z2 Tower G5 Workstation is capable of configuring up to two Z Turbo Drives. By default, the Z Turbo Drive configured is installed in the M.2 storage slot of the system motherboard.
SATA hardware-assisted RAID is not supported on Linux systems.
NOTE:
For solid state drives or hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB is reserved for system recovery software.

Audio/multimedia

Feature
Description
Integrated audio
HD Integrated Audio

Keyboard/mouse/other devices

Feature
Description
Keyboard and mouse
HP Premium Wireless Keyboard
HP USB 320K Keyboard
HP USB Business Slim Wired SmartCard CCID Keyboard (available as factory configured only)
HP USB Premium Wired Keyboard PROMO
HP 320M Wired Mouse
HP USB Premium Mouse
HP Wireless Premium Mouse
3Dconnexion CADMouse
HP Promo PS/2 Mouse
HP Wired Desktop 320MK Mouse and Keyboard
Racking and physical security
HP Z2 Mini and Z2/Z4/Z6 TWR Depth Adjustable Fixed Rail Rack Kit
Other devices (available as option)
HP Thunderbolt 3 PCIe card (Z2 Tower)
HP Z2 Internal Serial Port and PS/2 port
HP Z2 Power Cord Kit HP Z2 2nd serial port adapter
HP Z2 Tower Dust filter
HP Z2 Tower Dust Filter and bezel
HP 800/600/400 G3 Serial/ PS/2 adapter
HP PCIe x1 Parallel port card
HP DP Flex port 2020
HP 1 GbE LAN Flex port 2020
HP Dual USB-A 3.2 Gen 1 Flex 2020
HP Front USB-C 3.2 Gen 2 2020 TWR
HP HDMI Flex port 2020
HP USB-C 3.2 Gen 2 Alt Flex port 2020
HP VGA Flex Port 2020

Ports/slots/bays

Feature
Description
Ports and button
Front side
(1) Power button
(2) USB 3.2 Gen 1 Type-A ports (1 charging)
(2) USB 3.2 Gen 2 Type-A ports
(1) USB 3.2 Gen 2 Type-C port (optional, charging)
(1) SD Card reader 4.0 (optional)
(1) Headphone/microphone combo jack (with CTIA & OMTP headset support)
Back I/O ports
(1) Power input port
(2) DisplayPort (DP 1.4) ports
(1) Audio Line-in/out port
(1) RJ-45 Ethernet port
(2) USB 2.0 Type-A ports
(2) USB 3.2 Gen 2 Type-A ports
(2) USB 3.2 Gen 1 Type-A ports
(2) USB 3.2 Gen 2 Type-C ports
(1) Thunderbolt 3 Dual-port (optional; 40 Gbs signaling rate port, optional, cabled to PCIe AIC)
(1) Serial port (optional)
(1) Serial and PS/2 combo (optional)
Flexible module port output (optional)
(1) VGA port
(1) HDMI 2.0b port
(1) DisplayPort 1.4 port
(1) Dual USB 3.2 Gen 1 Type-A port
(1) USB 3.2 Gen 2 Type-C port (Alt mode)
(1) 2nd 1 GbE LAN
NOTE:
All DisplayPort ports support DP1.4 High Bit Rate HBR2 when video output is via Intel Graphics.
PCI Express connectors
(1) PCI Express Gen 3 slot x16 mechanical/ x16 electrical (LP, half-length)
(1) PCI Express Gen 3 slot x1 mechanical/ x1 electrical (LP, half-length)
(1) PCI Express Gen 3 slot x1 mechanical/ x1 electrical (LP, half-length)
(1) PCI Express Gen 3 slot x16 mechanical/ x4 electrical (LP, half-length)
(2) M.2 2280 Storage (PCIe Gen 3 x4)
(1) M.2 2230 WLAN (PCIe Gen 3 x1 and Intel CNVi)
Bays
(1) Shared internal/external 3.5 in bay
(1) Internal 3.5 im bay
(1) Internal 2.5 in bay (for SSD only)
(1) Dedicated 9.5 mm slim optical disk drive bay

Software/security

Feature
Description
BIOS
HP BIOSphere Gen6 (features vary)
HP DriveLock/HP Automatic DriveLock
BIOS Update via Network
Pre-boot Authentication
Power On Authentication
Secure Erase (methods outlined in the National Institute of Standards and Technology Special Publication 800-88)
Absolute Persistence Module
NOTE:
Absolute agent is activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.
Communication/connectivity
HP Wake on WLAN
HP Value Add software
HP Performance Advisor (available for download)
HP PC Hardware Diagnostics UEFI (Windows OS only)
ZCentral Remote Boost (available for download)
HP Notifications
HP Desktop Support Utility
HP Documentation
HP Image Assistant
HP Support Assistant
HP Sure Click
HP Sure Start Gen6
HP Sure Run Gen3
HP Sure Recover Gen3
Manageability
HP System Software Manager (SSM)
HP Client Catalog
HP BIOS Configuration Utility (BCU)
HP Driver Packs (available for download)
HP Manageability Integration Kit Gen4 (available for download)
Client Security software
Microsoft Defender
HP Client Security Manager Gen4
HP Security Manager (including Credential Manager, HP Password Manager, HP Spare Key)
HP Device Access Manager
HP Power On Authentication
Security
For Windows 10, Trusted Platform Module (TPM) 2.0 (Infineon SLB9670)
Common Criteria EAL4+ Certified
NOTE:
HP Cloud Recovery download tool (Cloud Recovery Client) is available under Software and Drivers section on the support page.

Power

Feature
Description
Power suppyly
700 W Wide-ranging
Active Power Factor Correction, 92% efficiency
500 W wide-ranging
Active Power Factor Correction, 90% efficiency
350 W wide-ranging
Active Power Factor Correction, 92% efficiency
NOTE:
Availability might vary by country/region.
Operating voltage range
115 to 230 VAC
Operating line frequency range
47 to 63 Hz

Physical specifications

Feature
Description
Dimensions (H x W x D)
35.56 x 17.02 x 38.61 cm (14.0 x 6.7 x 15.2 in)
Weight
Starting at 7.0 kg (15.43 lb)
NOTE:
Weight varies by configuration and components.

Environmental

ENERGY STAR (energy-saving features available on selected configurations – Windows only)
IT ECO declaration
US Federal Energy Management Program (FEMP)
China Energy Conservation Program (CECP)
Low Halogen
NOTE:
External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase might not be low halogen.
Feature
Description
Certifications
Feature
Description
Preinstalled
Windows 10 Pro 64
Windows 10 Pro for Workstations 64
Windows 10 Home 64
Windows 10 Enterprise 64 (web supported only)
NOTE:
Not all features are available in all editions or versions of Windows. Systems might require upgraded and/or separately purchased hardware, drivers, software, or BIOS update to take full advantage of Windows functionality. Windows 10 automatic updates are always enabled. ISP fees might apply and additional requirements might apply over time for updates.
NOTE:
In accordance with Microsoft support policy, this product does not support Windows 8 or Windows 7. HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation or later processors, or provide any Windows 8 or Windows 7 drivers.
Supported
HP Linux Ready
NOTE:
HP Workstations can be ordered with a variety of localization options that might vary by platform. Refer to the Linux Hardware Matrix for additional Linux OS information.
Xem thêm
Products specifications
Attribute nameAttribute value
Form FactTower
ProcessorXeon
